Standard Gas Struts 8/18 DIA
The various struts in this range are detailed below, please note that all asterisked items are available immediately while all others are available on a 24 hour turnaround.
Also please note that it is recommended that metal ball cups are fitted to all struts in the 8/18 DIA range that are gassed to a pressure greater than 600N.

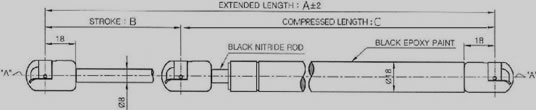

Product Code |
A |
B |
C |
Newton Force Range |
| SA175-18-50* | 175 | 50 | 125 | 50-700N |
| SA195-18-60* | 195 | 60 | 135 | 50-700N |
| SA220-18-70* | 220 |
70 | 150 | 50-700N |
| SA230-18-75 | 230 |
75 | 155 | 50-700N |
| SA245-18-85 | 245 | 85 | 160 | 50-700N |
| SA250-18-85* | 250 | 85 | 165 | 50-700N |
| SA265-18-95 | 265 | 95 | 170 | 50-700N |
| SA275-18-100 | 275 | 100 | 175 | 50-700N |
| SA290-18-105* | 290 | 105 | 185 | 50-700N |
| SA305-18-115 | 305 | 115 | 190 | 50-700N |
| SA315-18-120 | 315 | 120 | 195 | 50-700N |
| SA330-18-130 | 330 | 130 | 200 | 50-700N |
| SA336-18-130* | 336 | 130 | 206 | 50-700N |
| SA340-18-130* | 340 | 130 | 210 | 50-700N |
| SA350-18-135* | 350 | 135 | 215 | 50-700N |
| SA365-18-145* | 365 | 145 | 220 | 50-700N |
| SA375-18-150* | 375 | 150 | 225 | 50-700N |
| SA385-18-155* | 385 | 155 | 230 | 50-700N |
| SA405-18-165* | 405 | 165 | 240 | 50-700N |
| SA410-18-165* | 410 | 165 | 245 | 50-700N |
| SA415-18-170 | 415 | 170 | 245 | 50-700N |
| SA430-18-175* | 430 | 175 | 255 | 50-700N |
| SA450-18-185* | 450 | 185 | 265 | 50-700N |
| SA460-18-190* | 460 | 190 | 270 | 50-700N |
| SA465-18-195* | 465 | 195 | 270 | 50-700N |
| SA470-18-195 | 470 | 195 | 275 | 50-700N |
| SA485-18-205* | 485 | 205 | 280 | 50-700N |
| SA500-18-210* | 500 | 210 | 290 | 50-700N |
| SA505-18-215* | 505 | 215 | 290 | 50-700N |
| SA510-18-215* | 510 | 215 | 295 | 50-700N |
| SA520-18-220 | 520 | 220 | 300 | 50-700N |
| SA525-18-225* | 525 | 225 | 300 | 50-700N |
| SA535-18-230 | 535 | 230 | 305 | 50-700N |
| SA540-18-230* | 540 | 230 | 310 | 50-700N |
| SA550-18-235* | 550 | 235 | 315 | 50-700N |
| SA565-18-235* | 565 | 245 | 320 | 50-700N |
| SA575-18-250* | 575 | 250 | 325 | 50-700N |
| SA585-18-255* | 585 | 255 | 330 | 50-700N |
| SA595-18-260 | 595 | 260 | 335 | 50-700N |
| SA600-18-260* | 600 | 260 | 340 | 50-700N |
| SA610-18-265* | 610 | 265 | 345 | 50-700N |
| SA615-18-270 | 615 | 270 | 345 | 50-700N |
| SA630-18-275* | 630 | 275 | 355 | 50-700N |
| SA650-18-285 | 650 | 285 | 365 | 50-700N |
| SA670-18-295 | 670 | 295 | 375 | 50-700N |
| SA680-18-300* | 680 | 300 | 380 | 50-700N |
| SA700-18-310* | 700 | 310 | 390 | 50-700N |
| SA720-18-320 | 720 | 320 | 400 | 50-700N |
| SA750-18-335* | 750 | 335 | 415 | 50-700N |
| SA775-18-350 | 775 | 350 | 425 | 50-700N |
