Standard Gas Struts 10/22 DIA
The various struts in this range are detailed below, please note that all asterisked items are available immediately while all others are available on a 24 hour turnaround.
Also please note that the decrease in the maximum pressure of some of the struts is due to the extended length of the strut.

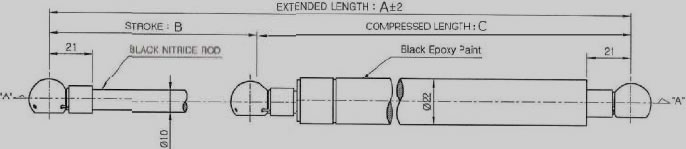

Product Code |
A |
B |
C |
Newton Force Range |
| SA295-22-105 | 295 | 105 | 190 | 50-1200N |
| SA330-22-125 | 330 | 125 | 205 | 50-1200N |
| SA375-22-145* | 375 | 145 | 230 | 50-1200N |
| SA405-22-160* | 405 | 160 | 245 | 50-1200N |
| SA430-22-175* | 430 | 175 | 255 | 50-1200N |
| SA450-22-185 | 450 | 185 | 265 | 50-1200N |
| SA500-22-210* | 500 | 210 | 290 | 50-1200N |
| SA505-22-215 | 505 | 215 | 290 | 50-1200N |
| SA525-22-225* | 525 | 225 | 300 | 50-1200N |
| SA550-22-235 | 550 | 235 | 315 | 50-1200N |
| SA565-22-240* | 565 | 240 | 325 | 50-1200N |
| SA575-22-245 | 575 | 245 | 330 | 50-1200N |
| SA595-22-260* | 595 | 260 | 335 | 50-1200N |
| SA600-22-260 | 600 | 260 | 340 | 50-1200N |
| SA620-22-270* | 620 | 270 | 350 | 50-1200N |
| SA630-22-275* | 630 | 275 | 355 | 50-1200N |
| SA650-22-285 | 650 | 285 | 365 | 50-1200N |
| SA700-22-310* | 700 | 310 | 390 | 50-1200N |
| SA750-22-335 | 750 | 335 | 415 | 50-1200N |
| SA770-22-345 | 770 | 345 | 425 | 50-1200N |
| SA795-22-360 | 795 | 360 | 435 | 50-1200N |
| SA816-22-365* | 816 | 365 | 451 | 50-1200N |
| SA830-22-375* | 830 | 375 | 455 | 50-1200N |
| SA850-22-385 | 850 | 385 | 465 | 50-1200N |
| SA900-22-415* | 900 | 415 | 485 | 50-1100N |
| SA930-22-425 | 930 | 425 | 505 | 50-1100N |
| SA940-22-430 | 940 | 430 | 510 | 50-1100N |
| SA975-22-445 | 975 | 445 | 530 | 50-1100N |
| SA1035-22-475 | 1035 | 475 | 560 | 50-1100N |
| SA1100-22-500 | 1100 | 500 | 600 | 50-1100N |
| SA1200-22-560 | 1200 | 560 | 640 | 50-1100N |
