Standard Gas Struts 14/28 DIA
The various struts in this range are detailed below, please note that all asterisked items are available immediately while all others are available on a 24 hour turnaround.
Also please note that the decrease in the maximum pressure of some of the struts is due to the extended length of the strut.

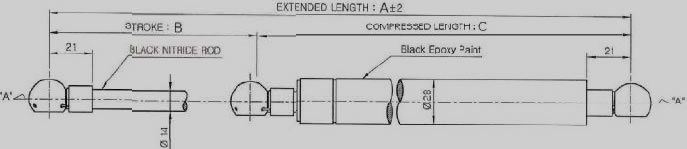

Product Code |
A |
B |
C |
Newton Force Range |
| SA250-28-085 | 250 | 85 | 165 | 50-2200N |
| SA295-28-105 | 295 | 105 | 190 | 50-2200N |
| SA330-28-125 | 330 | 125 | 205 | 50-2200N |
| SA375-28-145 | 375 | 145 | 230 | 50-2200N |
| SA405-28-160 | 405 | 160 | 245 | 50-2200N |
| SA430-28-175 | 430 | 175 | 255 | 50-2200N |
| SA450-28-185 | 450 | 185 | 265 | 50-2200N |
| SA505-28-215 | 505 | 215 | 290 | 50-2200N |
| SA525-28-225 | 525 | 225 | 300 | 50-2200N |
| SA550-28-235 | 550 | 235 | 315 | 50-2200N |
| SA600-28-260 | 600 | 260 | 340 | 50-2200N |
| SA630-28-275 | 630 | 275 | 355 | 50-2200N |
| SA640-28-280 | 640 | 280 | 360 | 50-2200N |
| SA650-28-285 | 650 | 285 | 365 | 50-2200N |
| SA700-28-310 | 700 | 310 | 390 | 50-2200N |
| SA720-28-320 | 720 | 320 | 400 | 50-2200N |
| SA730-28-325 | 730 | 325 | 405 | 50-2200N |
| SA750-28-335 | 750 | 335 | 415 | 50-2200N |
| SA800-28-360 | 800 | 360 | 440 | 50-2200N |
| SA830-28-375 | 830 | 375 | 455 | 50-2200N |
| SA850-28-385 | 850 | 385 | 465 | 50-2200N |
| SA885-28-400 | 885 | 400 | 485 | 50-2200N |
| SA900-28-410 | 900 | 410 | 490 | 50-2000N |
| SA910-28-415 | 910 | 415 | 495 | 50-2000N |
| SA940-28-430 | 940 | 430 | 510 | 50-2000N |
| SA1100-28-515 | 1100 | 515 | 595 | 50-2000N |
